Which LockNFlate® Air Chuck Do I Need?
Compare LockNFlate® Air Chucks
Find the right chuck for your valve type, application, and setup.
|
Best Seller

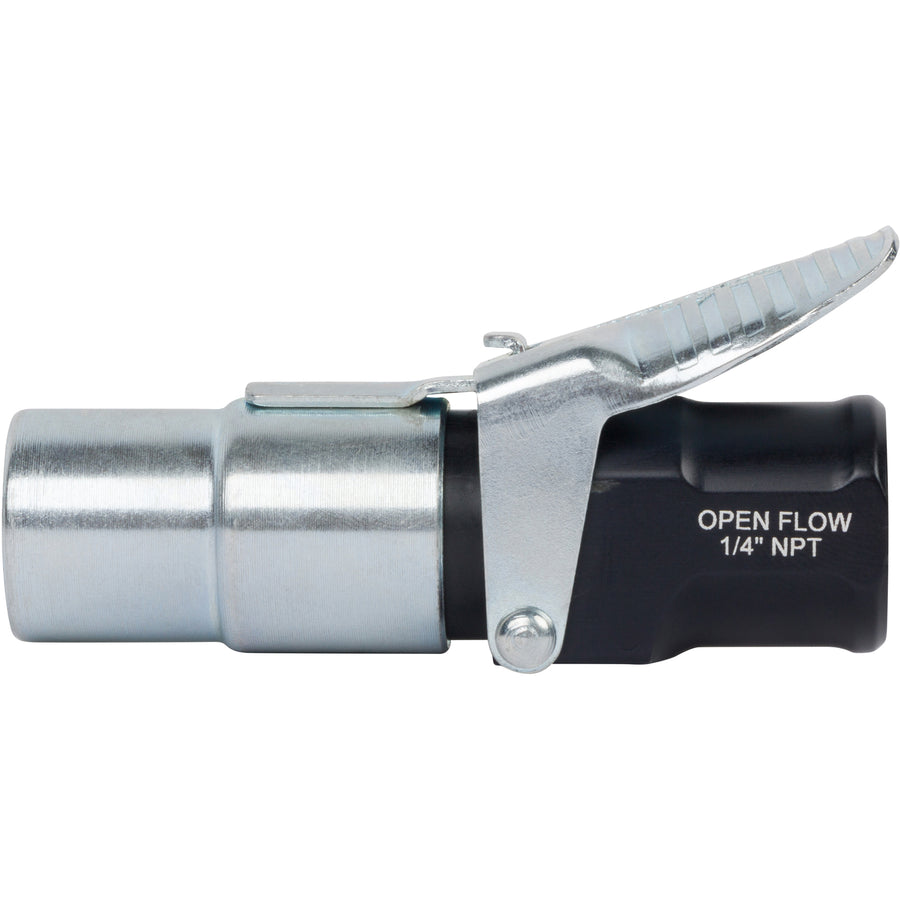

LockNFlate® Air Chuck – Open
Open Flow
Straight
Standard Valve
For battery inflators
|
Best Seller
LockNFlate® Air Chuck – Closed
Closed Flow
Straight
Standard Valve
For compressor hoses
|
Open Flow
LockNFlate® 90-Degree Air Chuck – Open
Open Flow
90° Angle
Standard Valve
Tight-access + battery inflators
|
Closed Flow
LockNFlate® 90-Degree Air Chuck – Closed
Closed Flow
90° Angle
Standard Valve
Tight-access + compressor
|
Heavy Equipment
LockNFlate® XL for Large Bore Tire Valves – Open
Open Flow
Large Bore VG12
250 PSI
Ag, mining & construction
|
Heavy Equipment
LockNFlate® XL for Large Bore Tire Valves – Closed
Closed Flow
Large Bore VG12
250 PSI
Ag, mining & construction
|
|
|---|---|---|---|---|---|---|
| Best For | ✔ Battery inflators, gauges & automatic systems on standard tire valves | ✔ Direct compressor hose inflation on standard tires | ✔ Battery inflators & gauges where valve stem is hard to reach straight-on | ✔ Direct compressor hose where valve stem is hard to reach straight-on | ✔ Large bore valves on ag, construction, and mining equipment | ✔ Large bore valves on ag, construction, and mining equipment |
| Valve & Connection | ||||||
| Valve Compatibility | Standard Schrader (VG8 / 8V1) | Standard Schrader (VG8 / 8V1) | Standard Schrader (VG8 / 8V1) | Standard Schrader (VG8 / 8V1) | ✔ Large bore Schrader (VG12 / 12V1) | ✔ Large bore Schrader (VG12 / 12V1) |
| Thread Size (Female) | 1/4" NPT | 1/4" NPT | 1/4" NPT | 1/4" NPT | 1/4" NPT | 1/4" NPT |
| Flow Type | ✔ Open – air passes through freely on or off the valve. Use when airflow is controlled at the source: battery inflators, trigger guns, foot pedals, inflator gauges, and automatic systems. | ✔ Closed – must engage tire valve for air to flow. Use when connected directly to a compressor or air hose with no trigger control. | ✔ Open – air passes through freely on or off the valve. Use when airflow is controlled at the source: battery inflators, trigger guns, foot pedals, inflator gauges, and automatic systems. | ✔ Closed – must engage tire valve for air to flow. Use when connected directly to a compressor or air hose with no trigger control. | ✔ Open – air passes through freely on or off the valve. Use when airflow is controlled at the source: battery inflators, trigger guns, foot pedals, inflator gauges, and automatic systems. | ✔ Closed – must engage tire valve for air to flow. Use when connected directly to a compressor or air hose with no trigger control. |
| Physical | ||||||
| Style / Head Angle | Straight | Straight | 90° | 90° | Straight | Straight |
| Overall Length / Reach | 3 in. (76.5 mm) | 3 in. (76.5 mm) | 2.4 in. (61 mm) | 2.4 in. (61 mm) | 3 in. (76.5 mm) | 3 in. (76.5 mm) |
| Locking Mechanism | 6 steel jaws – push-on locking | 6 steel jaws – push-on locking | 6 steel jaws – push-on locking | 6 steel jaws – push-on locking | 6 steel jaws – push-on locking | 6 steel jaws – push-on locking |
| Performance | ||||||
| Max Rated Pressure | 150 PSI (10.3 BAR) | 150 PSI (10.3 BAR) | 150 PSI (10.3 BAR) | 150 PSI (10.3 BAR) | ✔ 250 PSI (17 BAR) | ✔ 250 PSI (17 BAR) |
| Seal Type | Spring-loaded TPU seal | Spring-loaded TPU seal | Spring-loaded TPU seal | Spring-loaded TPU seal | Spring-loaded TPU seal | Spring-loaded TPU seal |
| Works w/ Valve Core Removed | ✔ Yes | ✔ Yes | ✔ Yes | ✔ Yes | ✔ Yes | ✔ Yes |
| Use Case Compatibility | ||||||
| Battery Inflators (Milwaukee, DeWalt, etc.) | ✔ Recommended | Not recommended | ✔ Recommended | Not recommended | ✔ Recommended (large bore) | Not recommended |
| Compressor / Air Hose Direct | Use closed flow for this | ✔ Recommended | Use closed flow for this | ✔ Recommended | Use closed flow for this | ✔ Recommended (large bore) |
| Inflator Gauges & Auto Systems | ✔ Yes – open flow required | No | ✔ Yes – open flow required | No | ✔ Yes – open flow required | No |
| Multi-Hose Inflation Kits | Use closed flow for this | ✔ Yes – closed flow required | Use closed flow for this | ✔ Yes – closed flow required | Use closed flow for this | ✔ Yes – closed flow required |
| Price | $39.99 | $39.99 | $39.99 | $39.99 | $49.99 | $49.99 |
Not sure whether to choose Open or Closed flow?
✔ Choose Open Flow if you control airflow at the source:
- Battery-powered inflators (Milwaukee®, DeWalt®, etc.)
- Trigger guns or foot pedal compressor setups
- Inflator gauges and automatic inflation systems
✔ Choose Closed Flow if you connect directly to a compressor:
- Direct compressor or air hose with no trigger control
- Multi-hose inflation kits
- Constant-pressure systems where air must stop off the valve
Best Seller
LockNFlate® Air Chuck – Open
Open FlowStraightStandard Valve
✔ Best For: Battery inflators, gauges & automatic systems on standard tires
Full Specifications
ValveStandard Schrader (VG8/8V1)
Thread1/4" NPT
Flow TypeOpen
StyleStraight
Locking6 steel jaws
Max PSI150 PSI (10.3 BAR)
Valve core removed✔ Yes
Price$39.99
Best Seller
LockNFlate® Air Chuck – Closed
Closed FlowStraightStandard Valve
✔ Best For: Direct compressor hose inflation on standard tires
Full Specifications
ValveStandard Schrader (VG8/8V1)
Thread1/4" NPT
Flow TypeClosed
StyleStraight
Locking6 steel jaws
Max PSI150 PSI (10.3 BAR)
Valve core removed✔ Yes
Price$39.99
Open Flow
LockNFlate® 90-Degree Air Chuck – Open
Open Flow90° AngleStandard Valve
✔ Best For: Battery inflators & gauges where valve stem is hard to reach straight-on
Full Specifications
ValveStandard Schrader (VG8/8V1)
Thread1/4" NPT
Flow TypeOpen
Style90°
Locking6 steel jaws
Max PSI150 PSI (10.3 BAR)
Valve core removed✔ Yes
Price$39.99
Closed Flow
LockNFlate® 90-Degree Air Chuck – Closed
Closed Flow90° AngleStandard Valve
✔ Best For: Direct compressor hose where valve stem is hard to reach straight-on
Full Specifications
ValveStandard Schrader (VG8/8V1)
Thread1/4" NPT
Flow TypeClosed
Style90°
Locking6 steel jaws
Max PSI150 PSI (10.3 BAR)
Valve core removed✔ Yes
Price$39.99
Heavy Equipment
LockNFlate® XL for Large Bore Tire Valves – Open
Open FlowLarge Bore VG12250 PSI
✔ Best For: Ag, mining & construction equipment with large bore valves – battery inflators
Full Specifications
ValveLarge Bore Schrader (VG12/12V1)
Thread1/4" NPT
Flow TypeOpen
StyleStraight
Locking6 steel jaws
Max PSI✔ 250 PSI (17 BAR)
Front Diameter0.81" (20.5mm)
Price$49.99
Heavy Equipment
LockNFlate® XL for Large Bore Tire Valves – Closed
Closed FlowLarge Bore VG12250 PSI
✔ Best For: Ag, mining & construction equipment with large bore valves – direct compressor
Full Specifications
ValveLarge Bore Schrader (VG12/12V1)
Thread1/4" NPT
Flow TypeClosed
StyleStraight
Locking6 steel jaws
Max PSI✔ 250 PSI (17 BAR)
Front Diameter0.81" (20.5mm)
Price$49.99
|
Dual Wheel
Dual Head Extended Tire Chuck – 9.5"
Open Flow
Dual Head
9.5" Reach
Light trucks & pickups
|
Dual Wheel
Dual Head Extended Tire Chuck – 13.5"
Open Flow
Dual Head
13.5" Reach
Medium-duty trucks
|
Fleet / Semi
Locking Dual Wheel Air Chuck, Straight Head
2-Jaw Locking
Remote Actuator
15.5" Reach
Semis & large trucks
|
Fleet / Semi
Locking Dual Wheel Air Chuck, Angled Head
2-Jaw Locking
20° Angled Head
15.5" Reach
Semis – inner & outer rims
|
|
|---|---|---|---|---|
| Best For | ✔ Light truck and pickup dually tires with moderate spacing | ✔ Medium-duty trucks and dualies needing extra reach | ✔ Semis and large commercial trucks – inner dual inflation hands-free | ✔ Semis – angled head positions on inner and outer rims of large trucks |
| Valve & Connection | ||||
| Valve Compatibility | Standard Schrader – dual head | Standard Schrader – dual head | Standard Schrader – dual head locking | Standard Schrader – dual head locking |
| Thread Size (Female) | 1/4" NPT | 1/4" NPT | 1/4" NPT | 1/4" NPT |
| Flow Type | Closed flow (engages valve to flow) | Closed flow (engages valve to flow) | Closed flow (engages valve to flow) | Closed flow (engages valve to flow) |
| Physical | ||||
| Style / Head Angle | Angled dual head | Angled dual head | Fixed straight head | Fixed 20° angled head |
| Overall Length / Reach | ✔ 9.5 in. (24 cm) | ✔ 13.5 in. (33 cm) | ✔ 15.5 in. (40 cm) | ✔ 15.5 in. (40 cm) |
| Locking Mechanism | Dual push-on heads | Dual push-on heads | ✔ 2-jaw locking + remote actuator | ✔ 2-jaw locking + remote actuator |
| Wheels Per Connection | ✔ Dual – inflates inner or outer | ✔ Dual – inflates inner or outer | ✔ Dual – inflates inner wheel | ✔ Dual – inner and outer positioning |
| Performance | ||||
| Max Rated Pressure | 150 PSI (10.3 BAR) | 150 PSI (10.3 BAR) | 150 PSI (10.3 BAR) | 150 PSI (10.3 BAR) |
| Seal Type | Push-on | Push-on | 2-jaw locking seal | 2-jaw locking seal |
| Works w/ Valve Core Removed | No | No | No | No |
| Use Case Compatibility | ||||
| Battery Inflators (Milwaukee, DeWalt, etc.) | N/A | N/A | N/A | N/A |
| Compressor / Air Hose Direct | ✔ Yes | ✔ Yes | ✔ Yes | ✔ Yes |
| Inflator Gauges & Auto Systems | N/A | N/A | N/A | N/A |
| Multi-Hose Inflation Kits | N/A | N/A | N/A | N/A |
| Price | $16.99 | $32.99 | $99.99 | $107.99 |
Dual Wheel
Dual Head Extended Tire Chuck – 9.5"
Open FlowDual Head9.5" Reach
✔ Best For: Light trucks & pickups with dual wheels
Full Specifications
ValveStandard Schrader – dual head
Flow TypeOpen (dual-head design)
Reach9.5 in. (24 cm)
WheelsDual – inner or outer
Max PSI150 PSI (10.3 BAR)
Price$16.99
Dual Wheel
Dual Head Extended Tire Chuck – 13.5"
Open FlowDual Head13.5" Reach
✔ Best For: Medium-duty trucks needing extra reach
Full Specifications
ValveStandard Schrader – dual head
Flow TypeOpen (dual-head design)
Reach13.5 in. (33 cm)
WheelsDual – inner or outer
Max PSI150 PSI (10.3 BAR)
Price$32.99
Fleet / Semi
Locking Dual Wheel Air Chuck, Straight Head
2-Jaw LockingRemote Actuator15.5" Reach
✔ Best For: Semis & large commercial trucks – inner dual inflation hands-free
Full Specifications
ValveStandard Schrader – dual locking
Flow TypeClosed (engages valve to flow)
StyleFixed straight head
Reach15.5 in. (40 cm)
Locking✔ 2-jaw + remote actuator
Max PSI150 PSI (10.3 BAR)
Price$99.99
Fleet / Semi
Locking Dual Wheel Air Chuck, Angled Head
2-Jaw Locking20° Angled Head15.5" Reach
✔ Best For: Semis – angled head for inner and outer rim positioning
Full Specifications
ValveStandard Schrader – dual locking
Flow TypeClosed (engages valve to flow)
StyleFixed 20° angled head
Reach15.5 in. (40 cm)
Locking✔ 2-jaw + remote actuator
Max PSI150 PSI (10.3 BAR)
Price$107.99
