Relocation Manifold Kits
SKU: LNL81203-1/8
You know how important it is to keep your costly equipment properly greased and maintained. Now we offer the best way to make that task more efficient than ever before. Introducing our innovative Grease Fitting Relocation Manifold Kits - the ultimate solution to simplify and streamline your machine lubrication process!
Our kits make it easy to run grease hoses from multiple fittings on your machine to a central grease fitting manifold. By bringing all of your grease points to a central location, you make the task of lubricating the machine faster and easier with less mess and less downtime.
Choose from 3, 4, or 6 connection manifolds. Each kit comes with an extra long roll of pre-filled grease hose that you cut to length. All the hardware is included to bring multiple grease points to one, central, easy-to-service greasing point. Hose clips are sold separately.
Please note that this item may take 7-10 days to fulfill based on its custom nature. If you need this item expedited, please contact us by phone at 603-795-2298, thank you.
Available in 1/8" or 1/4"-28, choose the kit that matches your machine!
This item ships FREE!

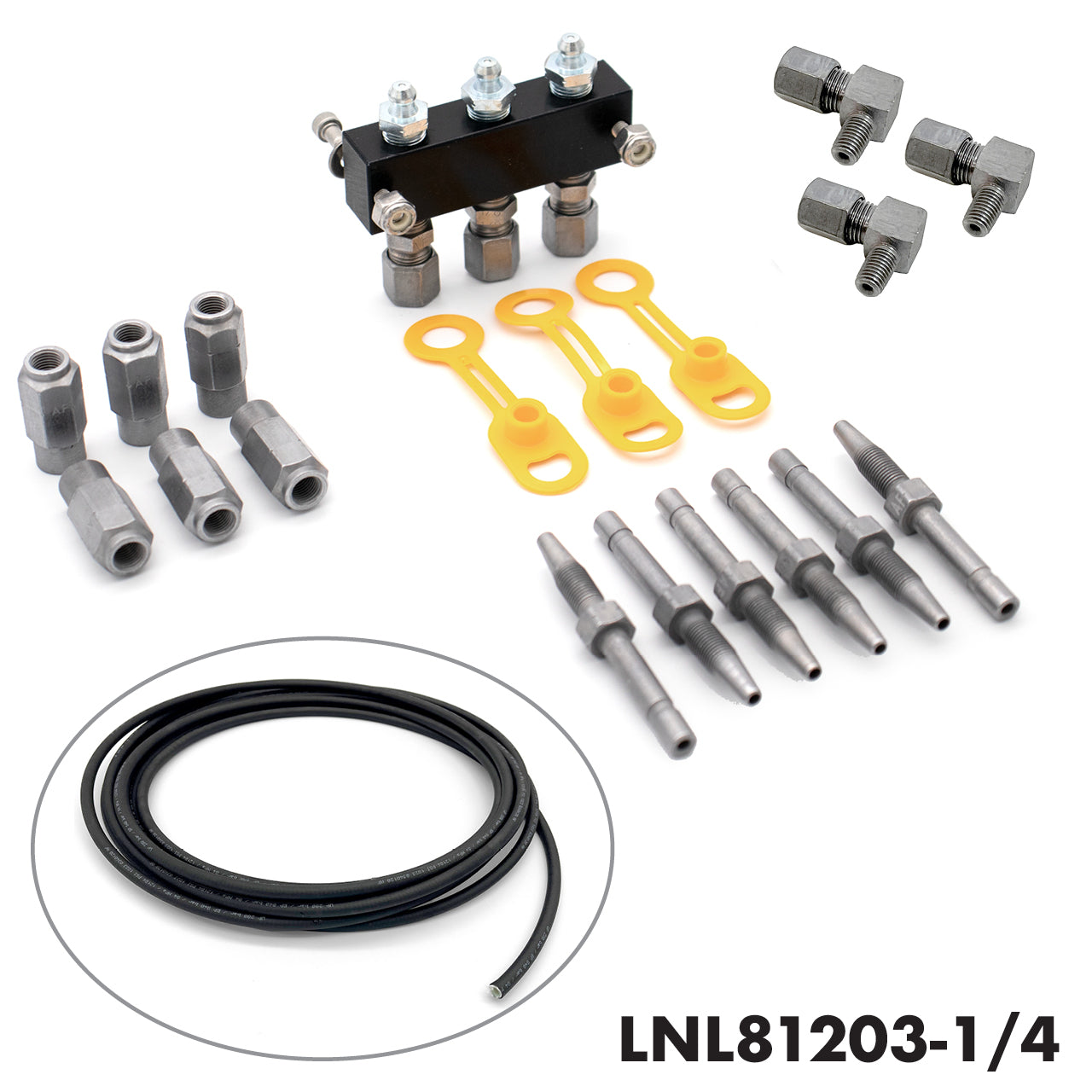

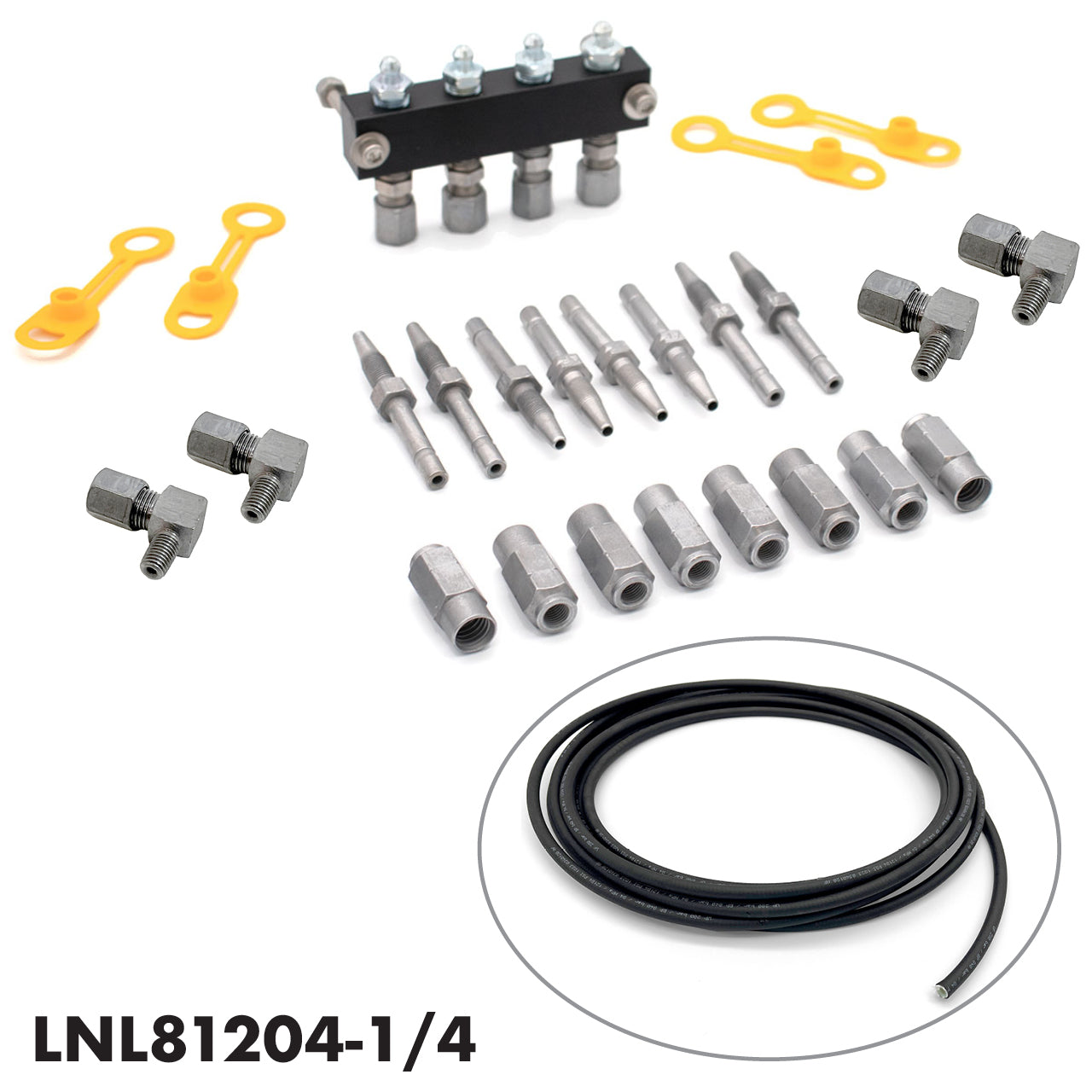

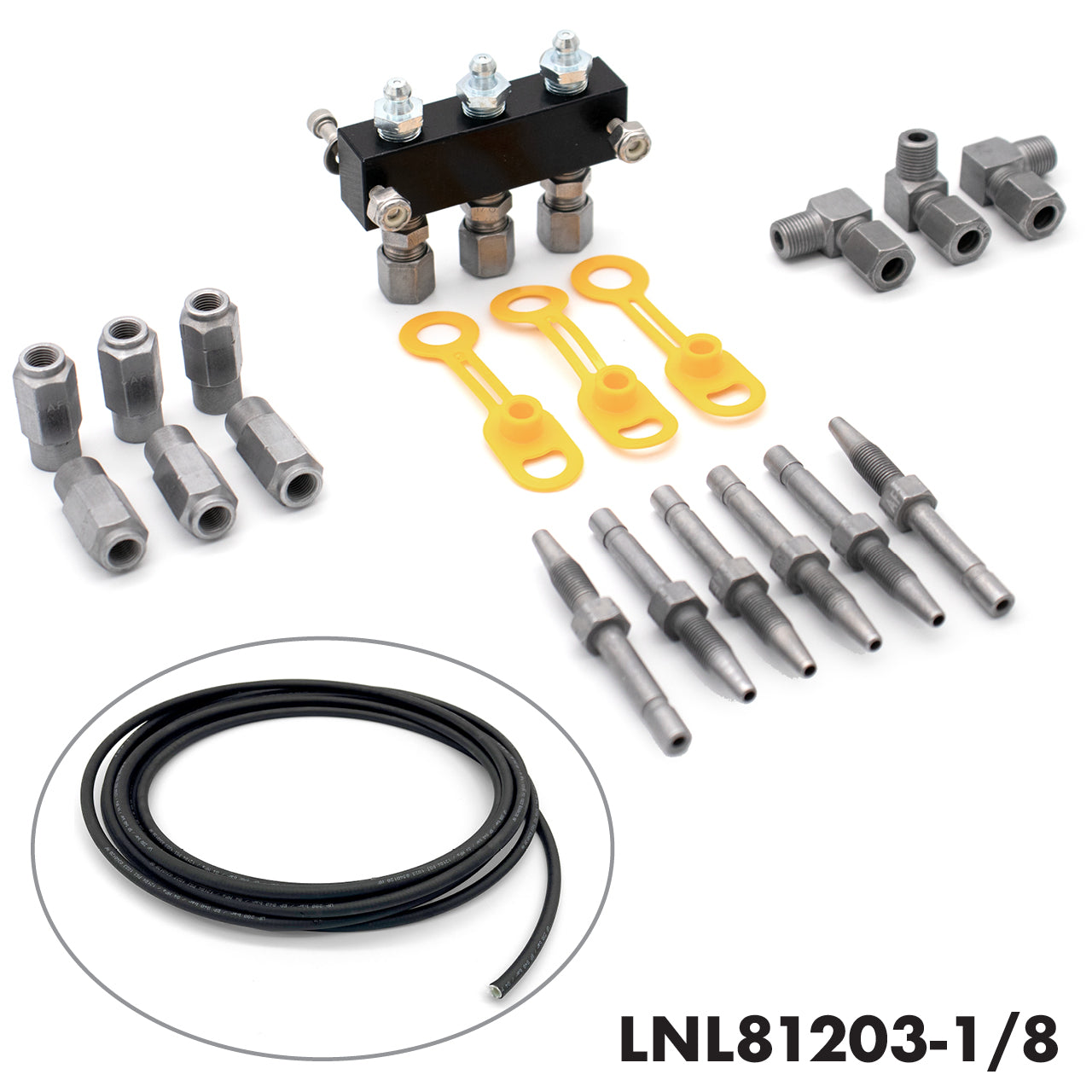

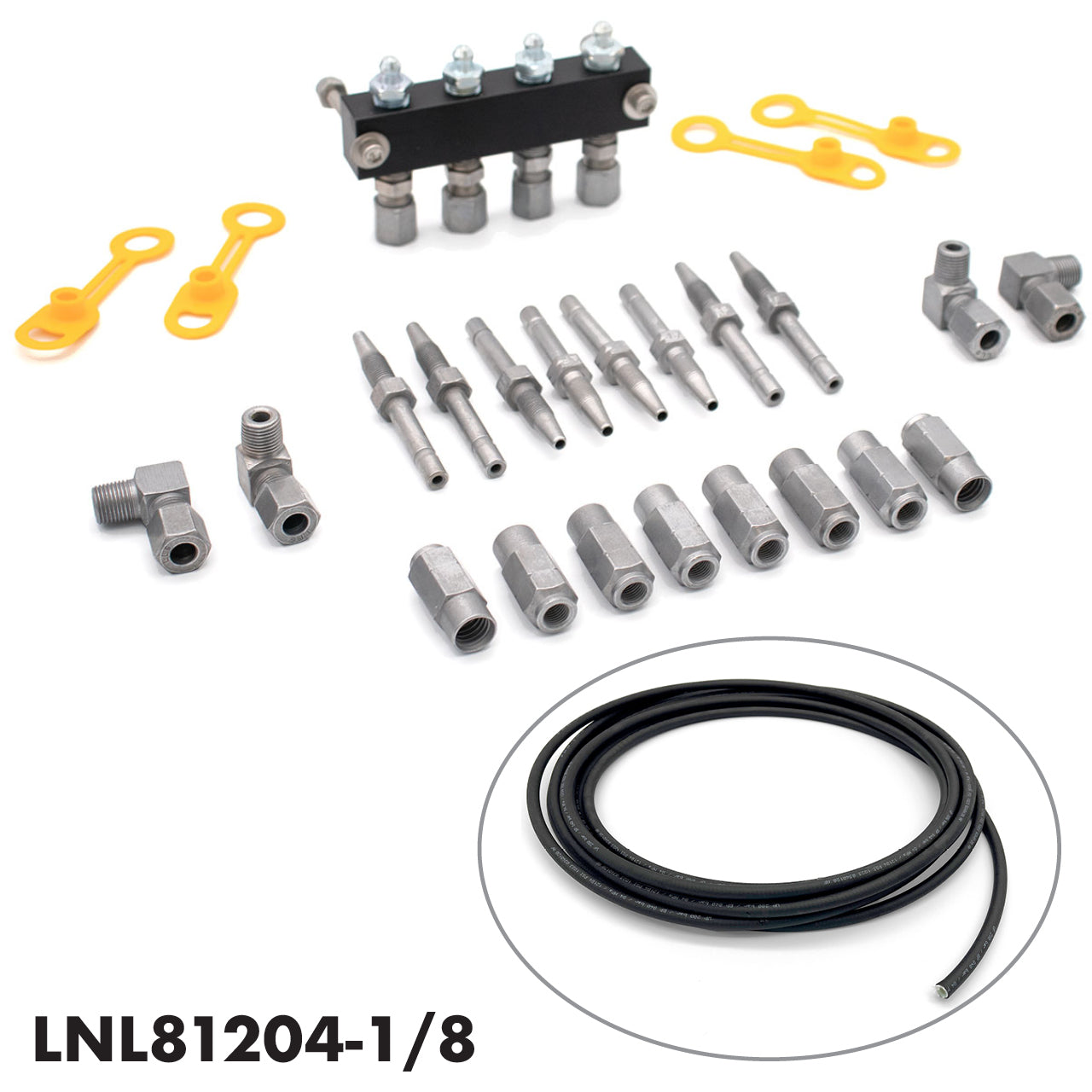

Each Kit Contains:

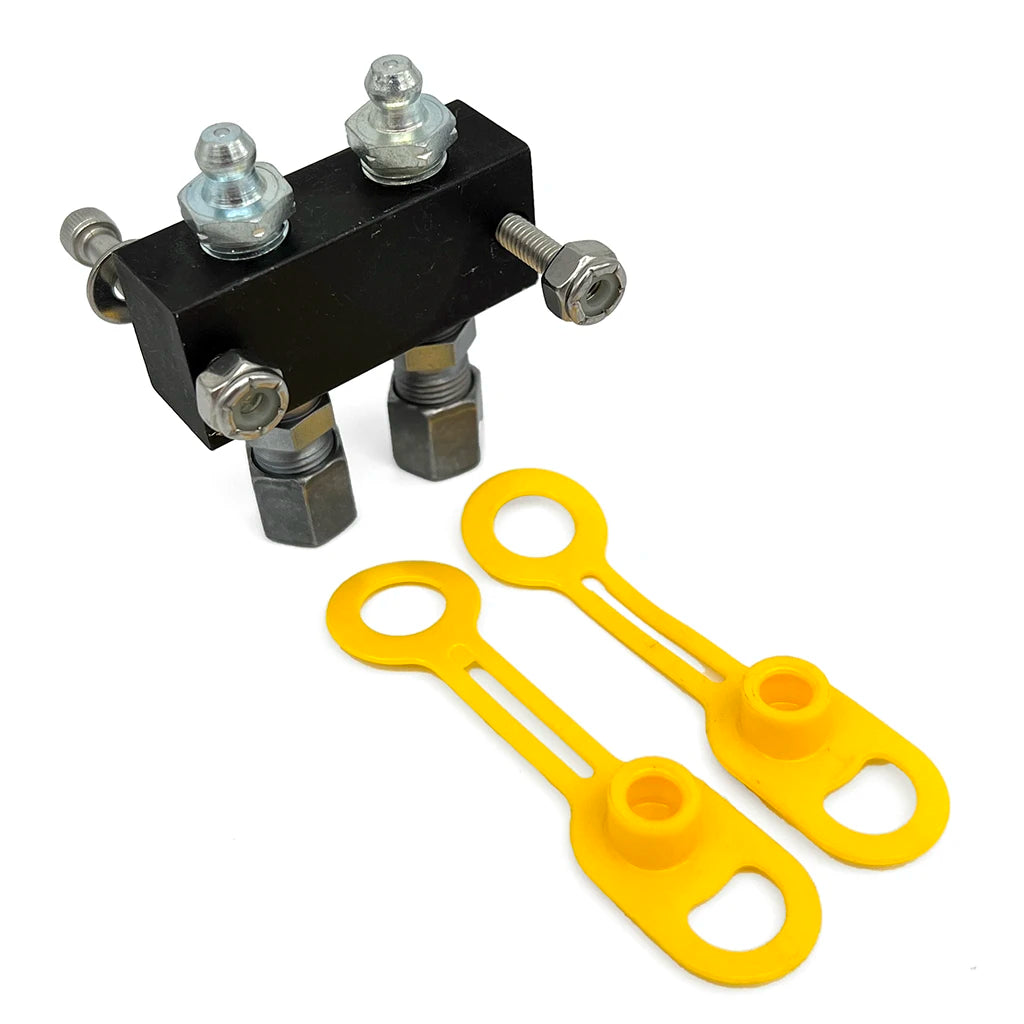

- Three (LNL81703 ), Four (LNL81704) or Six (LNL81706) Point Manifold
- Milled Aluminum Point Manifold Block
- Compression Tube Fittings
- Replaces Zerk fittings, click here for more adapters
- Mounting Hardware (Locknuts, bolts & washers)
- 3, 4, or 6 Zerks (Grease Fitting)
- 3, 4, or 6 Zerk Dust Covers

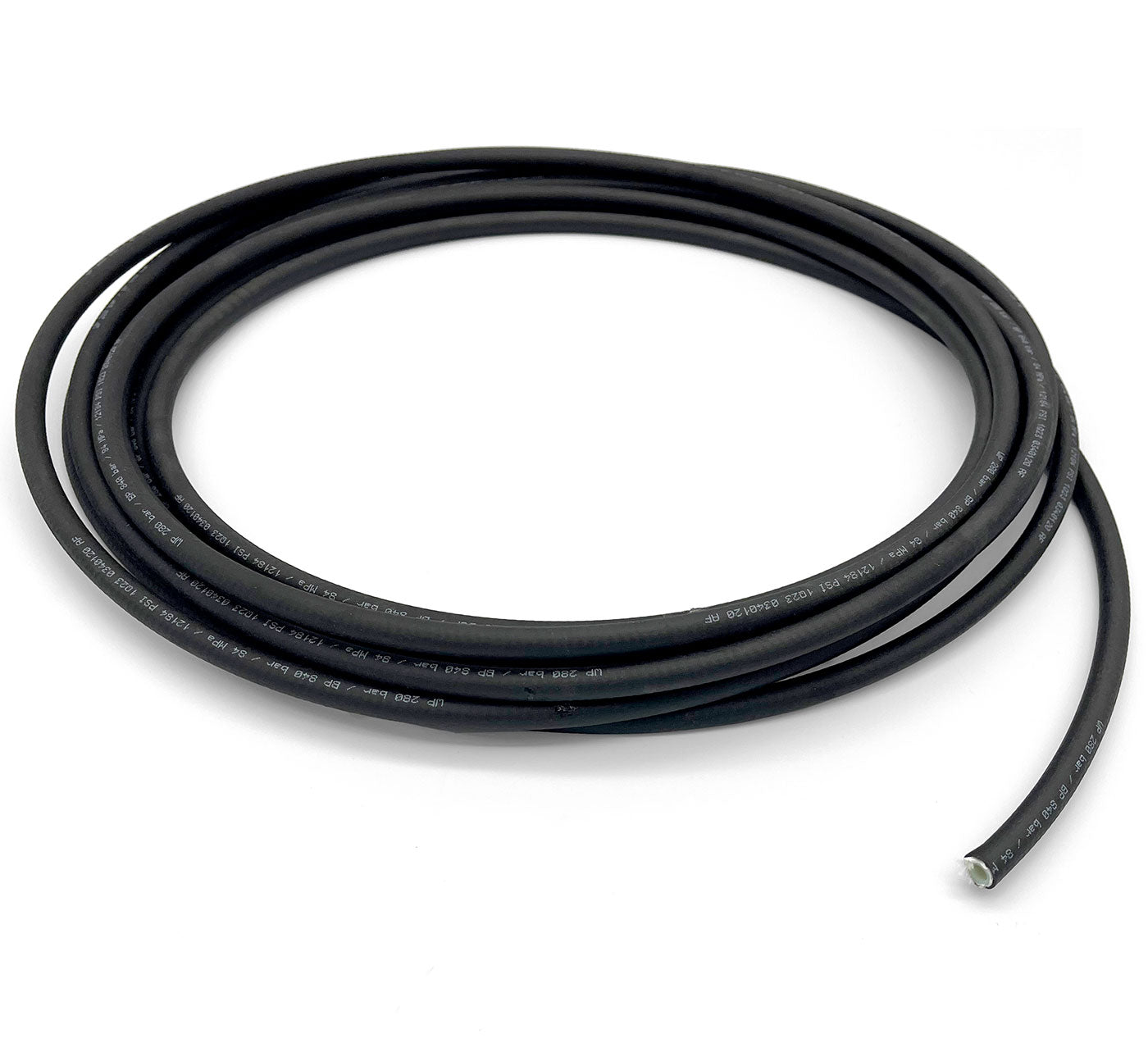

- 9, 12, or 18 meters of 100-001-M 8mm HP Hose grease filled (on average 3 meters per point is used)
- Hose operating temp rating: -40°F to 176°F
- 100-050 Threaded Sleeves
- 100-051 Tubular Socket Elbows
- 106-104-NPT - 1/8 NPTM x 6mm tube, elbow
The included parts terminate at the bearing with a 1/8" NPT fitting. See below for custom LockNLube adapters that allow you to replace any Zerk on any machine:
- 43716 1/8" NPT (M) X 1/8" NPT(F) - 45 Degree
- 44701 1/8" NPT (M) X 1/8" NPT(F) - 90 Degree
- 51942 1/4"-28 Taper (M) X 1/8" NPT(F) - Straight
- 51943 1/4"-28 Taper (M) X 1/8" NPT(F) - 90 Degree
- 310912 1/4"-28 Taper (M) X 1/8" NPT(F) - 45 Degree
- 120NP-AM6 M6X1 (M) TO 1/8" NPT (F) - Straight
- 120NP-AM6-90 M6 X 1 (M) TO 1/8” NPT (F) - 90 Degree
- LNL193-90 M10 X 1 (M) TO 1/8” NPT (F) - 90 Degree
- LNL194 M8 (M) TO 1/8 (F) Brass - Straight
- LNL194-90 M8 (M) TO 1/8 (F) Brass - 90 Degree
- LNL195 M10 X 1 (M) TO 1/8” NPT (F) - Straight
- LNL272 7/16-20 (M) TO 1/8” NPT (F) - Straight
- LNL273 7/16-28 (M) TO 1/8” NPT (F) - Straight
For use with:
- Manufacturing plants, food processing facilities, paper mills, wastewater plants, and more
- Agricultural equipment: harvesters, headers, diggers, tractors, trailers, hay balers, backhoes, milking machines
- Transport industry: trucks, trailers, vocational specialty vehicles
- Mobile mining machinery: excavators, drilling machines, screeners, impactors, crushers, and more
- Stationary mining equipment such as conveyors, crushers, processing plants, mixing stations
- Oil and gas drill rigs, pumps, and more
Each Kit Contains:
- Three (LNL81703 ), Four (LNL81704) or Six (LNL81706) Point Manifold
- Milled Aluminum Point Manifold Block
- Compression Tube Fittings
- Replaces Zerk fittings, click here for more adapters
- Mounting Hardware (Locknuts, bolts & washers)
- 3, 4, or 6 Zerks (Grease Fitting)
- 3, 4, or 6 Zerk Dust Covers
- 9, 12, or 18 meters of 100-001-M 8mm HP Hose grease filled (on average 3 meters per point is used)
- Hose operating temp rating: -40°F to 176°F
- 100-050 Threaded Sleeves
- 100-051 Tubular Socket Elbows
- 106-104-NPT - 1/8 NPTM x 6mm tube, elbow
The included parts terminate at the bearing with a 1/8" NPT fitting. See below for custom LockNLube adapters that allow you to replace any Zerk on any machine:
- 43716 1/8" NPT (M) X 1/8" NPT(F) - 45 Degree
- 44701 1/8" NPT (M) X 1/8" NPT(F) - 90 Degree
- 51942 1/4"-28 Taper (M) X 1/8" NPT(F) - Straight
- 51943 1/4"-28 Taper (M) X 1/8" NPT(F) - 90 Degree
- 310912 1/4"-28 Taper (M) X 1/8" NPT(F) - 45 Degree
- 120NP-AM6 M6X1 (M) TO 1/8" NPT (F) - Straight
- 120NP-AM6-90 M6 X 1 (M) TO 1/8” NPT (F) - 90 Degree
- LNL193-90 M10 X 1 (M) TO 1/8” NPT (F) - 90 Degree
- LNL194 M8 (M) TO 1/8 (F) Brass - Straight
- LNL194-90 M8 (M) TO 1/8 (F) Brass - 90 Degree
- LNL195 M10 X 1 (M) TO 1/8” NPT (F) - Straight
- LNL272 7/16-20 (M) TO 1/8” NPT (F) - Straight
- LNL273 7/16-28 (M) TO 1/8” NPT (F) - Straight
For use with:
- Manufacturing plants, food processing facilities, paper mills, wastewater plants, and more
- Agricultural equipment: harvesters, headers, diggers, tractors, trailers, hay balers, backhoes, milking machines
- Transport industry: trucks, trailers, vocational specialty vehicles
- Mobile mining machinery: excavators, drilling machines, screeners, impactors, crushers, and more
- Stationary mining equipment such as conveyors, crushers, processing plants, mixing stations
- Oil and gas drill rigs, pumps, and more
- Shipping options are available at checkout
- All of our orders ship out of either our Illinois or New Hampshire warehouse within 3 business days.
- Shipping carrier varies by size and weight of the package.
- LockNLube's shipping department operates Monday through Friday, 8 am to 2 pm EST except for holidays.
