An air chuck is a specialized mechanical fitting attached to an air hose or tire inflator that grips a tire's valve stem to direct air into the tire, allowing you to inflate or deflate tires quickly and accurately. It secures a tight, leak-free connection to transfer pressure smoothly. Understanding the core configurations, specifically the difference between hands-free locking air chuck models and traditional manual holds, enables vehicle owners and technicians to inflate tires efficiently while protecting their valve assemblies.

LockNFlate Air Chuck for tires makes tire inflation hands-free, safer, and far more efficient, whether you're in a home garage, a busy tire shop, or out on a job site. If you've ever wrestled with a chuck that slips off the valve stem, sprays air everywhere or requires you to hold it in place the whole time a tire inflates, this guide is for you.

What Is an Air Chuck?

An air chuck is the terminal piece on an air line that connects the air supply to a tire valve stem. The primary function of a locking chuck is to create a secure, airtight seal against a standard Schrader or large-bore valve stem. When locked onto the valve, it mechanically depresses the inner valve core to open up the passageway, allowing compressed air to flow cleanly into the tire without escaping into the environment.

The LockNFlate® Air Chuck, for example, uses six steel jaws that lock onto any Schrader valve to create a secure, hands-free connection. Once locked on, you can step back, let the tire inflate, and monitor the gauge without constantly fighting to maintain a seal. The LockNFlate® Air Chuck's secure attachment allows you to lock onto the valve stem, then stand safely back while the tire inflates. That's a meaningful safety benefit when inflating large truck or equipment tires at higher pressures.

Where Are Air Chucks Used?

Air chucks for tires are used anywhere tires need to be inflated:

1. Passenger vehicles and light trucks: Everyday tire pressure checks and top-ups in home garages and driveways.

2. Commercial tire shops and service bays: High-volume use where speed and reliability matter most. The LockNFlate® Air Chuck's heavy-duty construction is built to stand up to everyday use in even the busiest tire shops, service bays, and garages. Long-haul semi-trucks, buses, and industrial dually wheels that depend on highly accurate, high-volume inflation.

3. Farming, logging, and construction equipment: Large tires on tractors, excavators, and skid steers that are hard to reach and require a secure, hands-free connection. LockNLube's tools are built to stand up to the heavy use and demands of farming, excavation, logging, and trucking. Heavy equipment like tractors, backhoes, and skids relies on specialized large-bore tire systems.

4. Dual-wheel trucks: Specialty dual-wheels like the LockNFlate Angled Locking Dual Wheel Air Chuck are designed specifically to reach the inner valve stem on duals without removing the outer wheel.

5. Automotive garages: Regular passenger cars, SUVs, and lightweight utility trailers.

6. Home workshops: Keeping lawnmowers, mountain bikes, ATVs, and recreational inflatables ready to roll.

How Does an Air Chuck Work?

An air chuck with a gauge relies on mechanical force for attachment and internal seals to control airflow. When you attach the chuck to a standard tire valve stem, the internal pin of the chuck makes physical contact with the valve core. Pushing the chuck down depresses this inner pin.

Simultaneously, the internal part inside the chuck compresses against the outer rim of the valve stem to prevent air from escaping. Its internal steel jaws mechanically clamp down on the valve stem's external threads. This eliminates the need to apply constant manual pressure, preventing frustrating air leaks and ensuring the tool stays on until you deliberately release it.

It solves this with a revolutionary design: six steel jaws lock onto any Schrader valve to create a secure, hands-free connection. A durable, spring-loaded TPU seal allows you to inflate tires with or without the valve core in place.

The LockNFlate is available in two flow configurations, each suited to a different setup:

Open Flow: Air passes through freely on or off the valve stem. For use with inflator gauges and automatic systems.

Closed Flow: Must engage the tire valve for air to flow. For use directly from a compressor or air hose.

Types of Air Chucks

LockNLube Offers Three Core LockNFlate® Air Chuck Styles

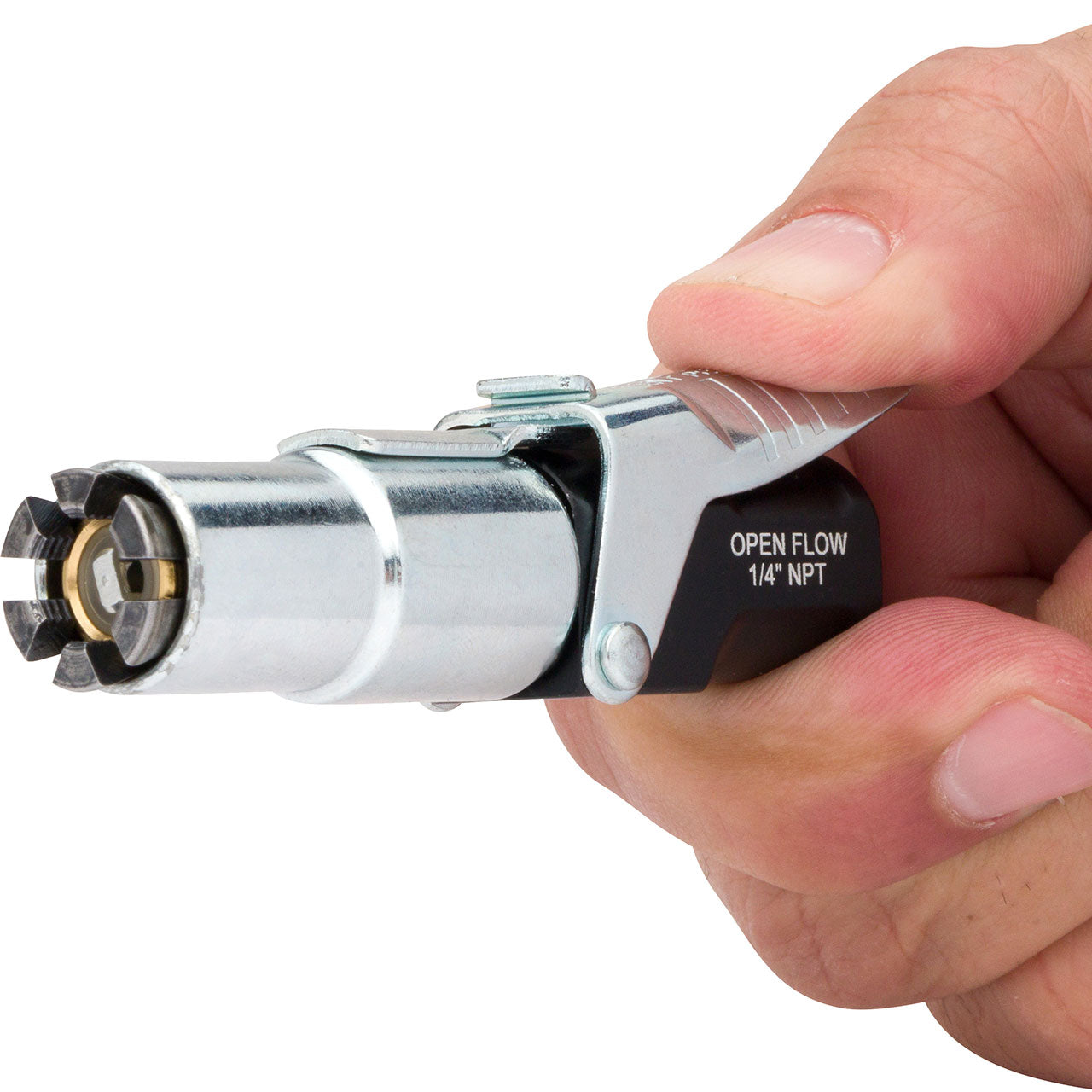

1. Straight Air Chuck: The LockNFlate® Air Chuck, Straight is the most versatile option for everyday use. The straight design provides a direct, in-line connection for easy use on accessible valve stems. It's rated to 150 PSI and uses a 1/4-inch NPT thread size, making it compatible with most standard air hoses. It's LockNLube's best-selling air chuck.

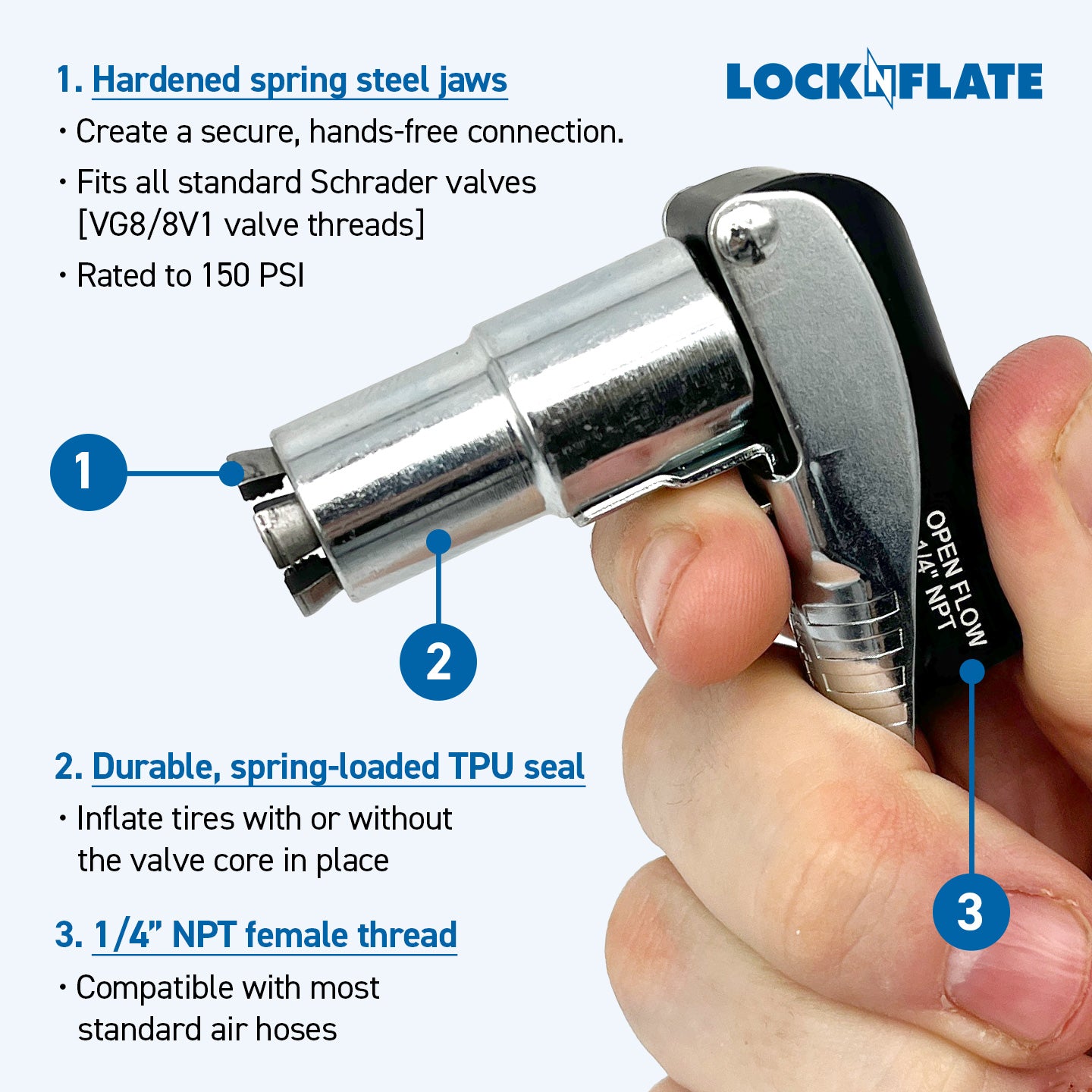

2. 90-Degree Air Chuck: The LockNFlate® Air Chuck, 90-Degree is the go-to when valve stems are recessed or at an awkward angle, common on many trucks, SUVs, and trailers. The right-angle design lets you make a secure locking connection without bending the hose or fighting the geometry of the wheel well.

3. XL Air Chuck for Large Bore Valves: The LockNFlate® XL is designed for large bore tire valves found on heavy equipment, agricultural machinery, and commercial trucks with high-volume valve stems that standard chucks can't properly grip.

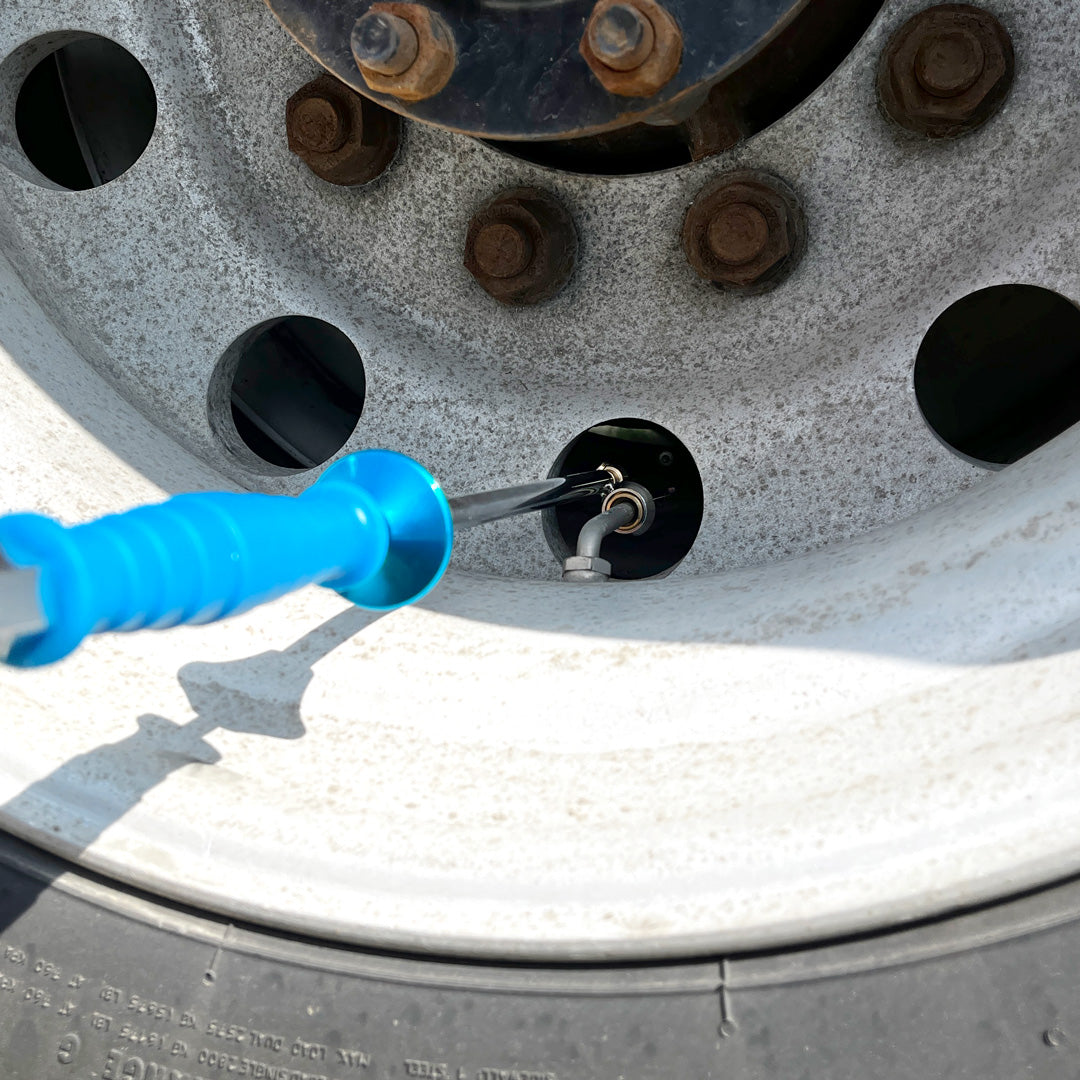

4. Dual-Wheel Air Chucks: For dually trucks and tandem-axle trailers, LockNLube offers the LockNFlate Angled Dual Wheel Air Chuck, the Dual Head Extended Tire Chuck, 9.5 in, and the heavy-duty Angled Locking Dual Wheel Air Chuck.

5. Air Chuck with Gauge and Digital Tire Inflators: If you want an integrated solution that combines a locking air chuck with a digital tire pressure gauge, LockNLube offers the LockNFlate PRO Digital Tire Inflator Gauge with LockNFlate® Locking Air Chuck and the LockNFlate PRO Pre-Set Digital Tire Inflator Gauge with LockNFlate® Locking Air Chuck for shop-grade use.

The LockNFlate PRO Analog Tire Inflator Gauge with Dual Head Air Chuck offers a reliable analog option for those who prefer a traditional gauge dial.

Signs It's Time to Replace Your Air Chuck

Because these are mechanical wear items, their components will eventually degrade under frequent use. Watch out for these common warning signs:

• Persistent Audible Leaking: Hissing sounds coming directly from the chuck head while connected to a valve stem indicate that the internal rubber gasket or TPU seal has worn thin or torn.
• Slipping or Weak Grip: If your locking collet slips off the valve stem threads under standard pressure, the steel locking jaws are likely worn down.
• Damaged Actuators: Physical distortion or stiffness in the collar sliders or remote release handles means the internal spring mechanisms have reached the end of their operational lifespan.

Conclusion

A digital tire pressure gauge and inflator is one of those small tools that quietly makes a big difference. Once you understand what it does and how to choose the right one, there is no going back to struggling with a leaking or slipping connection at the valve stem.

The LockNFlate® collection from LockNLube is purpose-built for hands-free, leak-free inflation and is available in straight, 90-degree, and XL styles to suit different valve stem configurations. Whether you are inflating passenger car tires in the driveway, servicing a fleet in a busy service bay, or dealing with large-bore commercial valve stems, the chuck is designed for this job.

The signature feature across the entire LockNFlate line is its six steel jaws, which lock onto any standard Schrader valve to create a secure, hands-free connection rated to 150 PSI and suitable for garage and industrial airline systems, auto and manual tire inflators, and constant-pressure systems. That means you can attach the chuck, step back, and let the tire inflate safely without holding constant pressure against the valve stem.

When you are ready to add gauge capability to your setup, the LockNFlate PRO Digital Tire Inflator Gauge is the natural next step. It pairs the locking air chuck with a high-visibility LED display, a 32-inch hybrid polymer hose with bend guards, and a rechargeable lithium-ion battery, delivering ±1 PSI accuracy across a 7–174 PSI measuring range, with a 3-in-1 inflate, deflate, and check function in one tool.

Frequently Asked Questions

1. What's the Difference Between an Air Chuck and a Tire Inflator?

An air chuck is the fitting that attaches to the tire's valve stem. It's just the connector.

A tire inflator is a complete tool that delivers air under pressure and typically includes a gauge to measure PSI.

The two work together: the inflator provides the air and pressure reading, while the chuck makes the seal on the valve.

2. What PSI Can a Standard Air Chuck Handle?

The LockNFlate® Air Chuck is rated to 150 PSI, suitable for garage and industrial airline systems, auto and manual tire inflators, portable pressure gauges, and constant-pressure systems. Always verify the PSI rating of any air chuck before connecting it to a high-pressure source, and never exceed the stated maximum working pressure.

3. What Is an Open Flow vs. Closed Flow Air Chuck?

An Open Flow air chuck allows air to pass through freely, whether or not it is attached to a valve stem. It is designed for use with inflator gauges and automatic inflation systems. A Closed Flow air chuck only allows air to flow when it is actively engaged on the tire valve. It is designed for direct use from a compressor or air hose. Choosing the correct flow type for your setup is important. If you're using a battery-powered portable inflator, Open Flow is typically the right choice.
